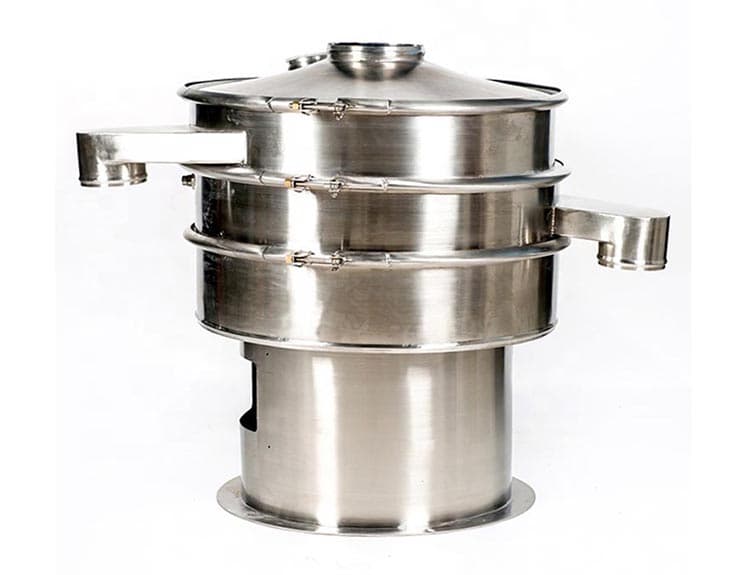

高效振蕩篩

產品概述：應用：本機適用于醫藥、化工、食品等行業對干粉物料的粒度進行分選。 This machine is applied in the sorting of the granule size of dry powder materials in trades of medicine chemical and foodstuff etc. 應用圖：

產品詳情

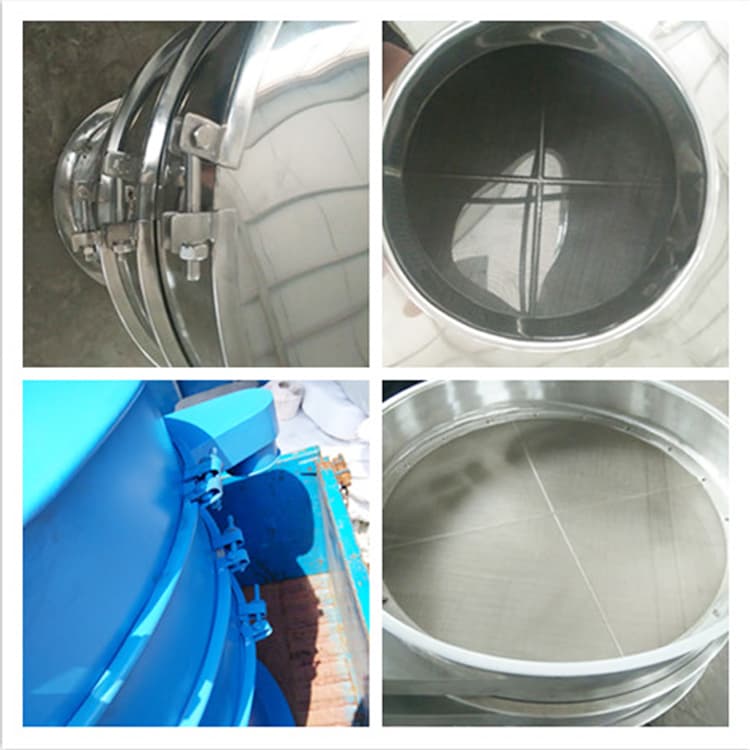

圖片集錦

應用：

本機適用于醫藥、化工、食品等行業對干粉物料的粒度進行分選。

This machine is applied in the sorting of the granule size of dry powder materials in trades of medicine, chemical and foodstuff etc.

應用圖：

特點：

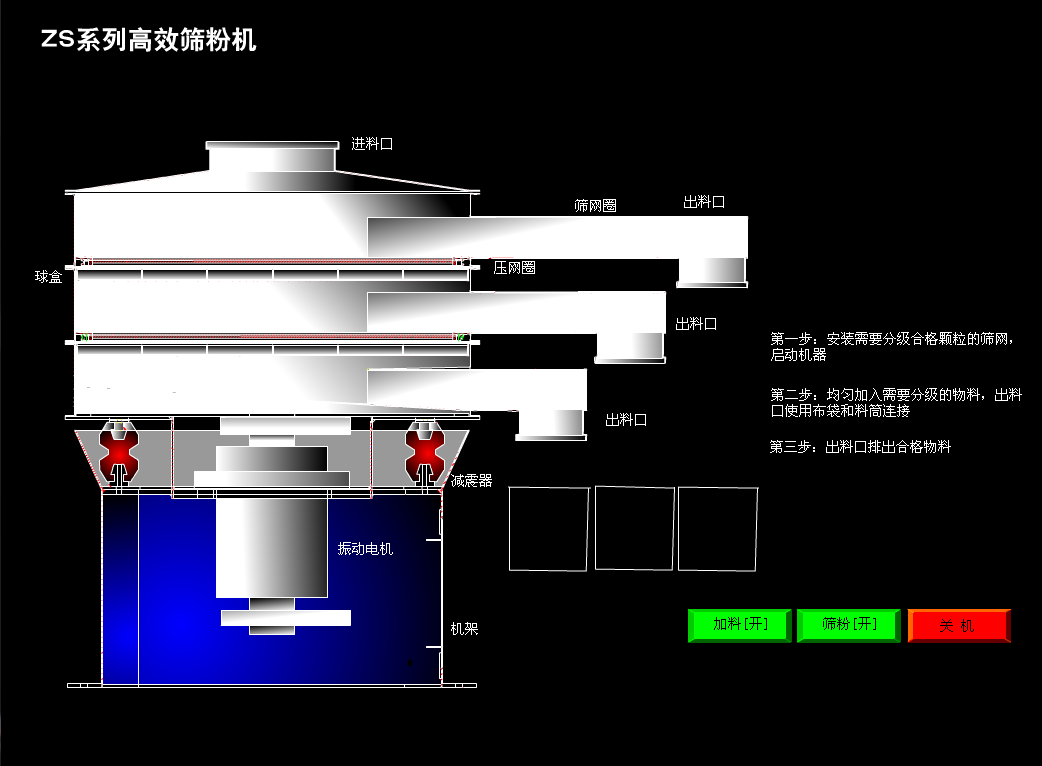

該機由立式激振電機，篩底，網架，篩粉室，橡膠振蕩碗等各緊固件組成。本機可用于單層或多層篩網分選使用，具有結構緊湊、操作維修方便，運轉平穩、噪音低、處理物料量大、細度小，適用廣泛等優點。

This machine is composed of vertical vibration motor,a sieve bottom, a mesh frame, sieve room,rubber vibrating bowl, and all fastening pieces.

It can be operated for sorting purpose either in single sieve or multi-sieves with a compact structure,

ease operating and repairing, smooth running, low noise,large target material-treating, good fineness and wide applicability.

技術參數：

型號	STGZ-400	STGZ-600	STGZ-800	STGZ-1000	STGZ-1200
產量(kg/h)	20-200	150-1200	200-2000	250-3000	300-4000
外形尺寸	6006001000	8008001100	11009501150	110011001250	130013001400
功率	0.55	0.55	0.75	1.5	1.5
過篩目數(mesh)	20-180	20-180	20-180	20-180	20-180
振動頻率(r/min)	1500	1500	1500	1500	1500
重量	120	180	220	300	400
